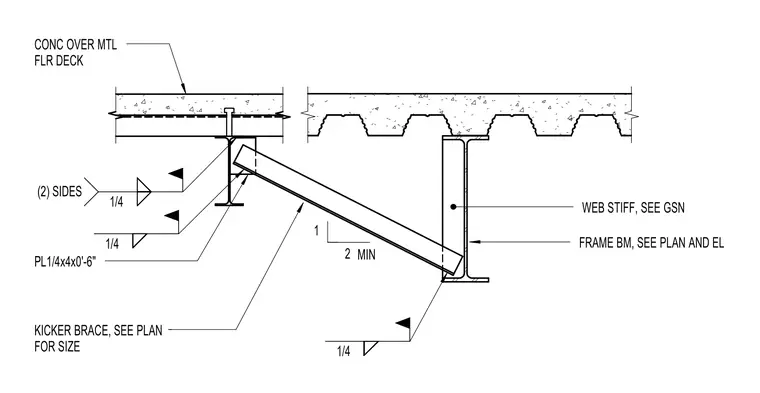

A structural kicker brace extends diagonally from a supporting frame beam up to the underside of a floor beam beneath a concrete over metal floor deck. The kicker brace is sized per plan and connects to the framing using a quarter-inch fillet weld on two sides, aided by a quarter-inch by four-inch by zero-foot-six-inch plate. A web stiffener is provided at the frame beam per general structural notes. Additional frame beam sizing and location details are referenced to the structural plans and elevations.
CONC OVER MTL FLR DECK WEB STIFF, SEE GSN FRAME BM, SEE PLAN AND EL PL1/4x4x0'-6" KICKER BRACE, SEE PLAN FOR SIZE 1 2 MIN 1/4 (2) SIDES 1/4 1/4
