Structural · S-FB6R4

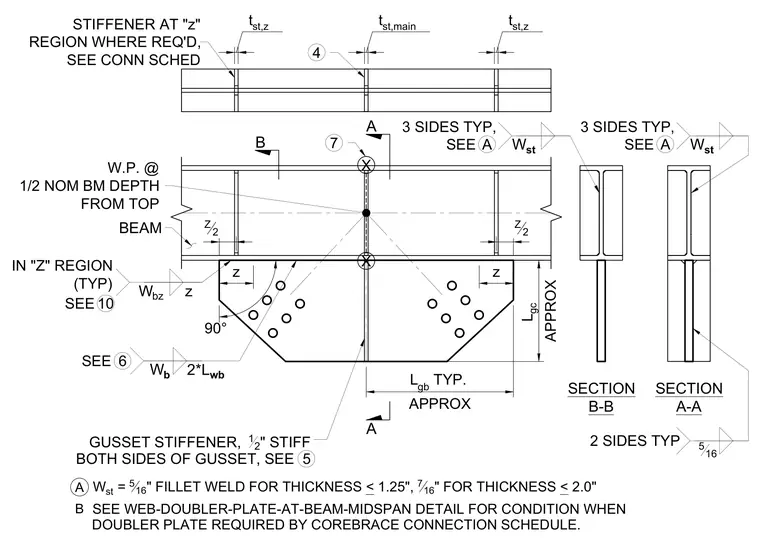

Typical Chevron Brace Connection at Beam

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

A typical chevron brace connection at a steel beam features a gusset plate attached along the beam web. A gusset stiffener with a one-half-inch plate is provided on both sides of the gusset. Stiffeners are also placed at the z-region where required by the connection schedule. Weld sizes are specified based on plate thickness, including five-sixteenth-inch and seven-sixteenth-inch fillet welds. Bolt holes for the brace connection are arranged on the gusset plate.
