Structural · S-FB6DM

Horizontal Truss Connection at Steel Beam

Materials

Elements

Roofs Decks Trusses Connections / Plates

About this detail

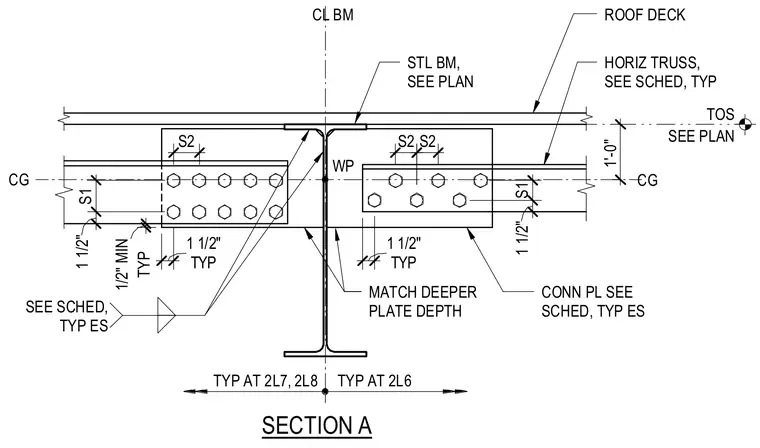

Horizontal truss members frame into the web of a steel beam using connection plates sized per schedule. Bolts secure the truss members to the connection plates, which maintain a minimum one-half inch clearance. A roof deck bears across the top flange of the steel beam, with the top of steel set at a dimension per plan.
