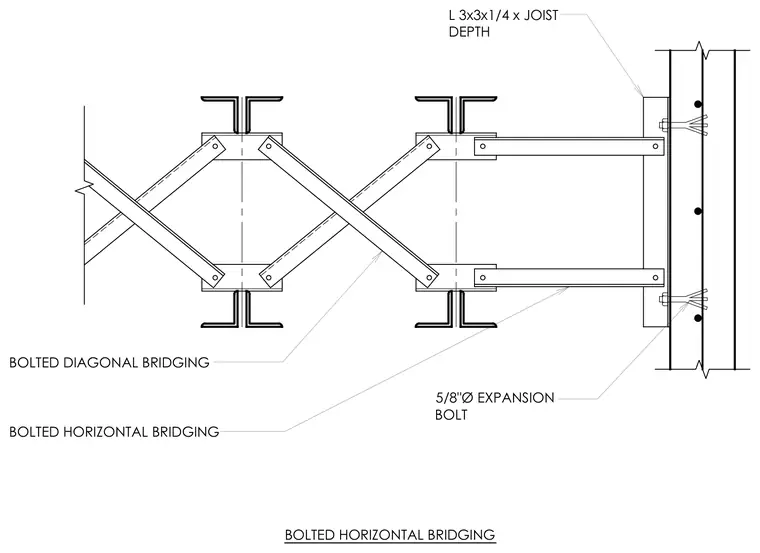

Bolted horizontal bridging and bolted diagonal bridging span between open-web steel joists or angle members. The horizontal bridging members connect to a vertical support using 5/8-inch diameter expansion bolts. An angle member measuring L 3x3x1/4 by joist depth ties the bridging assembly into the adjacent structure.
(;3$16,21 BOLT L 3x3x1/4 x JOIST DEPTH BOLTED DIAGONAL BRIDGING BOLTED HORIZONTAL BRIDGING BOLTED HORIZONTAL BRIDGING
