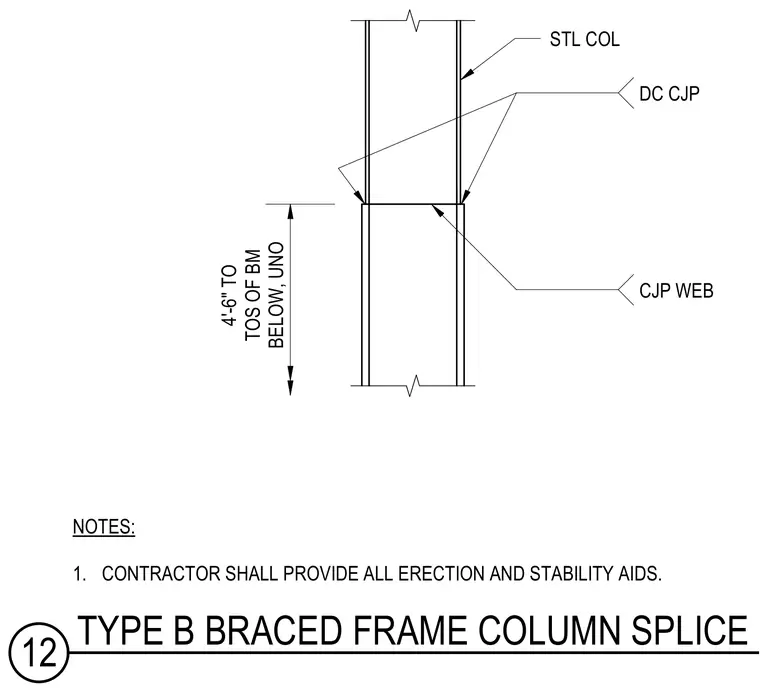

This structural steel detail shows a column splice for a braced frame utilizing complete joint penetration welds at both the flange and the web. The steel columns are aligned vertically with a dimensional callout indicating four feet six inches to the top of the steel beam below, unless noted otherwise. A general note requires the contractor to provide all erection and stability aids.
4'-6" TO TOS OF BM BELOW, UNO DC CJP CJP WEB STL COL NOTES: 1. CONTRACTOR SHALL PROVIDE ALL ERECTION AND STABILITY AIDS. 12 TYPE B BRACED FRAME COLUMN SPLICE
