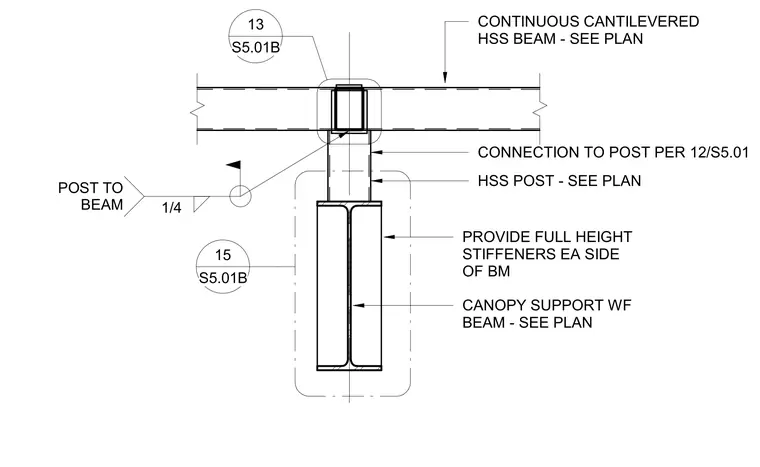

A continuous cantilevered hollow structural section beam frames over an HSS post supported by a canopy wide flange beam sized per plan. Full-height stiffener plates are provided on each side of the wide flange beam at the post location. The post to beam connection is welded with a one-quarter inch fillet weld, with further post connections detailed per sheet S5.01.
S5.01B 15 S5.01B 13 CANOPY SUPPORT WF BEAM - SEE PLAN HSS POST - SEE PLAN CONTINUOUS CANTILEVERED HSS BEAM - SEE PLAN CONNECTION TO POST PER 12/S5.01 1/4 POST TO BEAM PROVIDE FULL HEIGHT STIFFENERS EA SIDE OF BM
