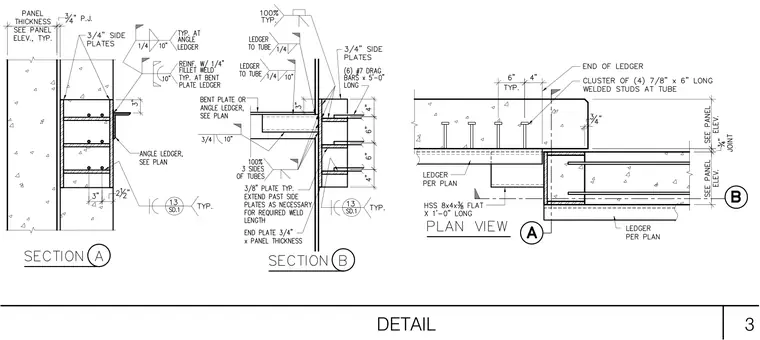

Precast concrete panels connect using an HSS 8x4x3/8 flat by 1'-0" long ledger tube with three-eighth inch plate type extensions welded on three sides. Three-quarter inch side plates and angle ledgers secure the panel joints, reinforced with one-quarter inch fillet welds typically at angle ledgers and bent plate ledgers. A cluster of four seven-eighth inch by six inch long welded studs anchors into the tube. Six number 7 drag bars measuring 5'-0" long embed into the concrete assembly.
