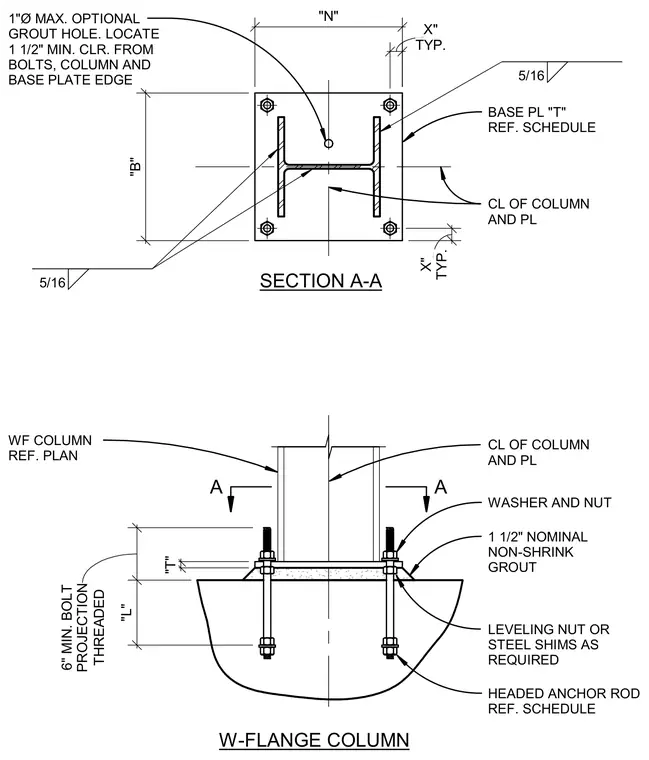

A wide-flange steel column welds to a base plate of thickness T sized per schedule with five-sixteenths fillet welds. The base plate rests on a one-and-a-half-inch nominal layer of non-shrink grout supported by a concrete foundation. Leveling nuts or steel shims sit below the base plate for elevation adjustment. Four headed anchor rods with washers and nuts secure the assembly, maintaining a minimum bolt projection and one-and-a-half-inch minimum clearance from bolts to the column and base plate edge. An optional one-inch diameter max grout hole is centered in the base plate.
A A WASHER AND NUT SECTION A-A CL OF COLUMN AND PL WF COLUMN REF. PLAN 5/16 1"Ø MAX. OPTIONAL GROUT HOLE. LOCATE 1 1/2" MIN. CLR. FROM BOLTS, COLUMN AND BASE PLATE EDGE HEADED ANCHOR ROD REF. SCHEDULE 5/16 BASE PL "T" REF. SCHEDULE CL OF COLUMN AND PL 1 1/2" NOMINAL NON-SHRINK GROUT LEVELING NUT OR STEEL SHIMS AS REQUIRED W-FLANGE COLUMN "N" TYP. X" TYP. X" "T" "L" THREADED 6" MIN. BOLT PROJECTION "B"
