Concrete Beam and Slab Reinforcement Detail

Elements

About this detail

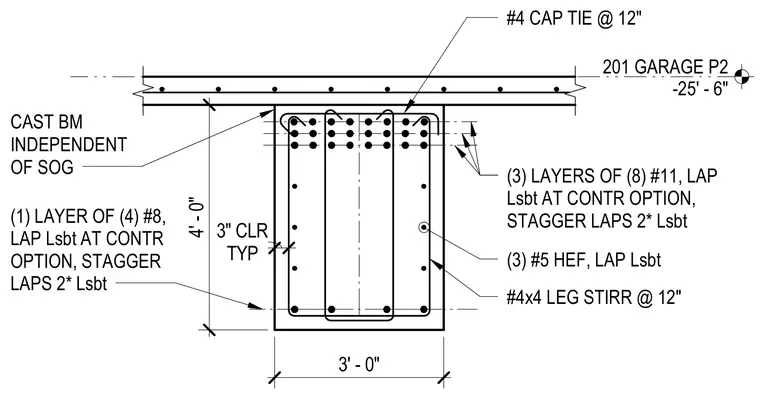

A concrete beam measuring three feet wide by four feet deep is cast independently of the slab on grade. The top of the beam features three layers of eight number eleven bars with staggered lap splices at contractor option, enclosed by number four cap ties at twelve inches on center. The bottom of the beam contains one layer of four number eight bars, similarly detailed with staggered lap splices. Sides of the beam include three number five horizontal edge bars with tension lap splices, while the entire assembly is reinforced with four-leg number four stirrups at twelve inches on center and three inches typical concrete clearance.
