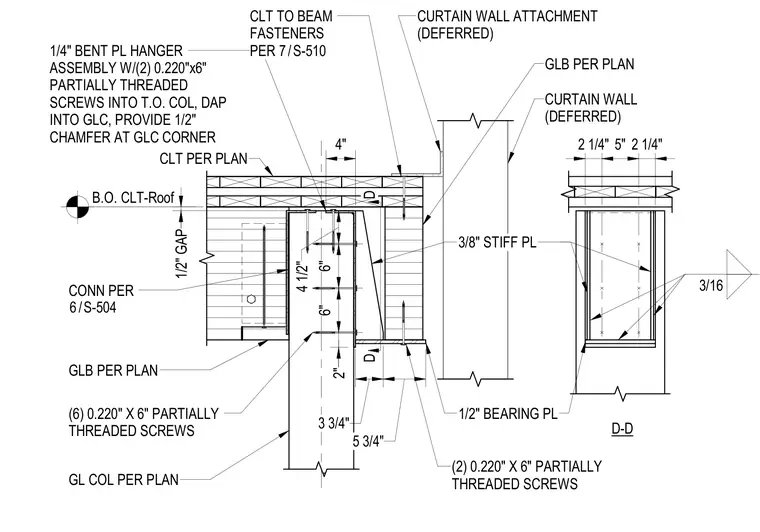

A one-quarter-inch bent plate hanger assembly connects the glulam roof beam to the top of the glulam column using six zero-point-two-two-inch by six-inch partially threaded screws into the top of the column, dapped into the glulam beam with a one-half-inch chamfer at the corner. The cross-laminated timber roof panel bears on top with a one-half-inch gap below the roof. A three-eighths-inch stiffener plate and one-half-inch bearing plate are integrated into the connection. A deferred curtain wall attachment connects to the perimeter framing with two zero-point-two-two-inch by six-inch partially threaded screws.
D D CLT PER PLAN GLB PER PLAN GLB PER PLAN GL COL PER PLAN CURTAIN WALL (DEFERRED) CURTAIN WALL ATTACHMENT (DEFERRED) 1/2" BEARING PL 2" 6" 6" 4 1/2" 3/8" STIFF PL 3/16 D-D 4" 3 3/4" 5 3/4" 2 1/4" 5" 2 1/4" (6) 0.220" X 6" PARTIALLY THREADED SCREWS (2) 0.220" X 6" PARTIALLY THREADED SCREWS 1/4" BENT PL HANGER ASSEMBLY W/(2) 0.220"x6" PARTIALLY THREADED SCREWS INTO T.O. COL, DAP INTO GLC, PROVIDE 1/2" CHAMFER AT GLC CORNER CONN PER / 6 S-504 CLT TO BEAM FASTENERS PER / 7 S-510 1/2" GAP B.O. CLT-Roof
