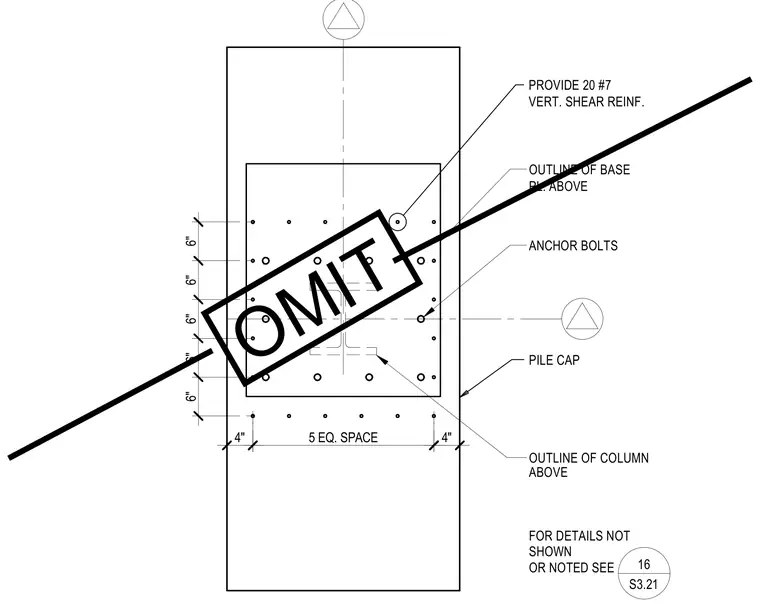

A steel column base plate sits above anchor bolts embedded in a concrete pile cap. The foundation features twenty number 7 vertical shear reinforcing bars arranged around the perimeter. The column shape is outlined centrally with anchor bolts positioned symmetrically in a multi-bolt pattern. Dimensions indicate 6-inch spacing intervals along the vertical axis and 5 equally spaced intervals across the horizontal span.
PROVIDE 20 #7 VERT. SHEAR REINF. OUTLINE OF BASE PL. ABOVE ANCHOR BOLTS PILE CAP OUTLINE OF COLUMN ABOVE FOR DETAILS NOT SHOWN OR NOTED SEE 4" 5 EQ. SPACE 4" 6" 6" 6" 6" 6" 16 S3.21 OMIT
