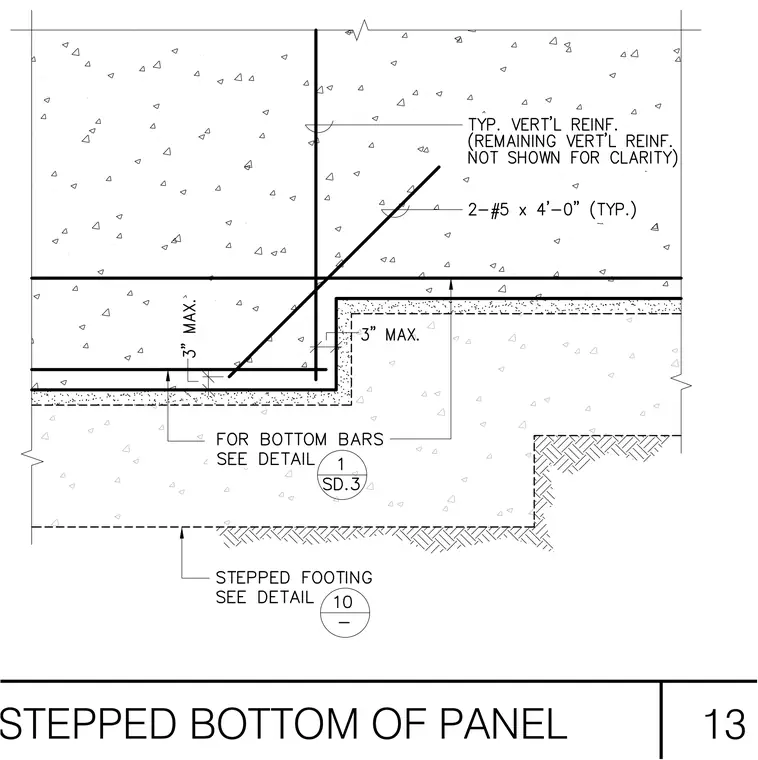

A stepped bottom condition for a concrete wall panel bears above a stepped footing. Typical vertical reinforcement is provided with remaining bars omitted for clarity, supplemented by diagonal pairs of number 5 reinforcing bars measuring four feet long at the step transition. A maximum three-inch dimension governs the step geometry and clearance limits. Bottom bars refer to a separate detail on sheet SD.3, and the stepped footing foundation references detail 10.
