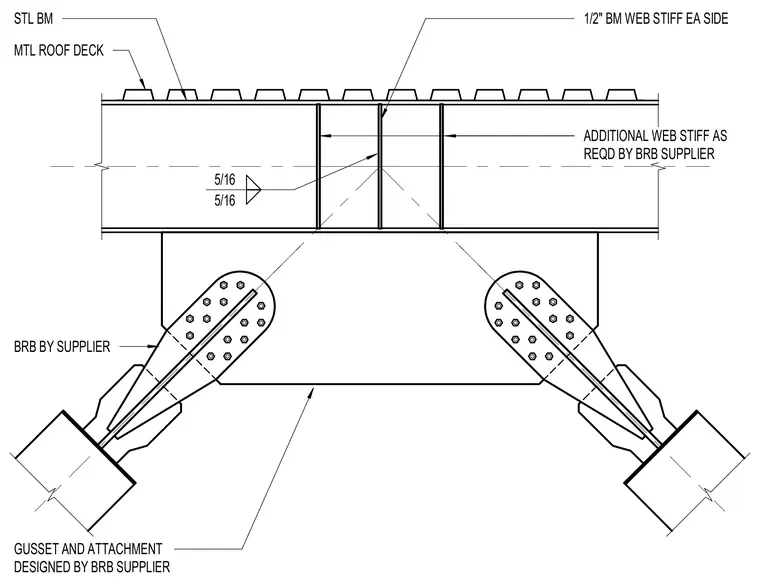

A buckling-restrained brace connects directly to a gusset plate assembly using bolted connections, framing into a steel beam supporting a metal roof deck. A gusset plate attached to the underside of the steel beam is included, with the gusset and attachment designed by the buckling-restrained brace supplier. One-half-inch beam web stiffeners are provided on each side, supplemented by additional web stiffeners as required by the brace supplier. Fillet welds of five-sixteenths inch secure the internal stiffener plates to the beam web.
GUSSET AND ATTACHMENT DESIGNED BY BRB SUPPLIER BRB BY SUPPLIER STL BM MTL ROOF DECK ADDITIONAL WEB STIFF AS REQD BY BRB SUPPLIER 1/2" BM WEB STIFF EA SIDE 5/16 5/16
