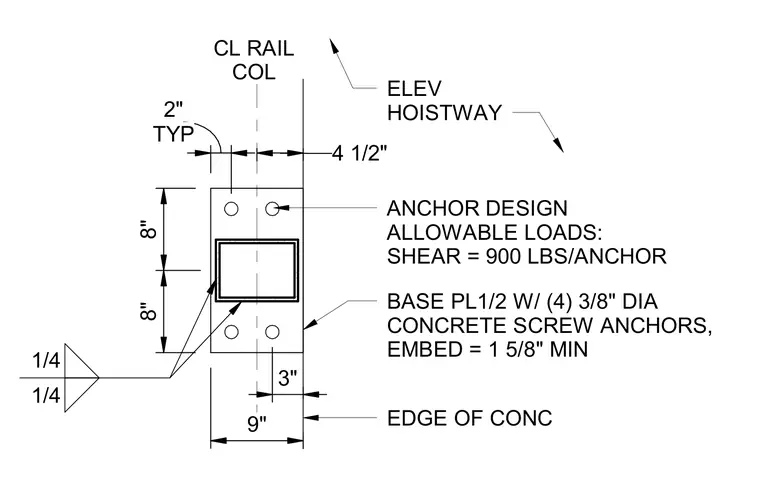

An elevator rail column base plate measuring nine inches by sixteen inches is secured to concrete with four three-eighths-inch diameter concrete screw anchors. The anchors require a minimum embedment of one and five-eighths inches. The base plate is half an inch thick and positioned four and a half inches from the edge of the concrete. The design allowable shear load is nine hundred pounds per anchor.
4 1/2" EDGE OF CONC CL RAIL COL ELEV HOISTWAY 1/4 1/4 BASE PL1/2 W/ (4) 3/8" DIA CONCRETE SCREW ANCHORS, EMBED = 1 5/8" MIN 8" 8" TYP 2" 9" ANCHOR DESIGN ALLOWABLE LOADS: SHEAR = 900 LBS/ANCHOR 3"
