Structural · S-F9W3Y

Cantilevered Beam Connection at Column

Materials

Concrete Metal (misc.)

Elements

Columns Beams Decks Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection

About this detail

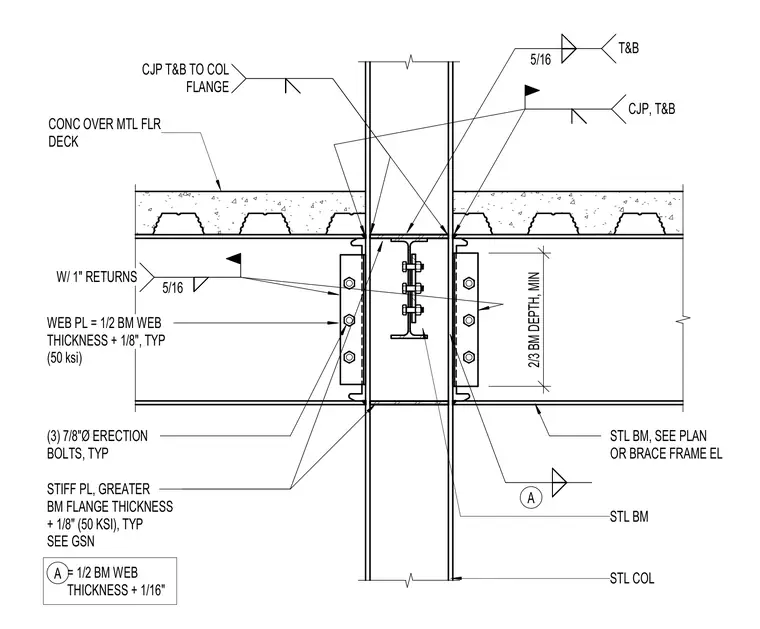

Steel beams frame continuously through or connect directly to a steel column supporting a concrete over metal floor deck assembly. The beam flanges are secured to the column flange using complete joint penetration welds at the top and bottom. A web plate measuring half the beam web thickness plus one-eighth of an inch with a fifty ksi yield strength connects the beam web, utilizing three seven-eighths inch diameter erection bolts and five-sixteenths inch fillet welds with one-inch returns. Stiffener plates matching the beam flange thickness plus one-eighth of an inch are provided at the column web.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
