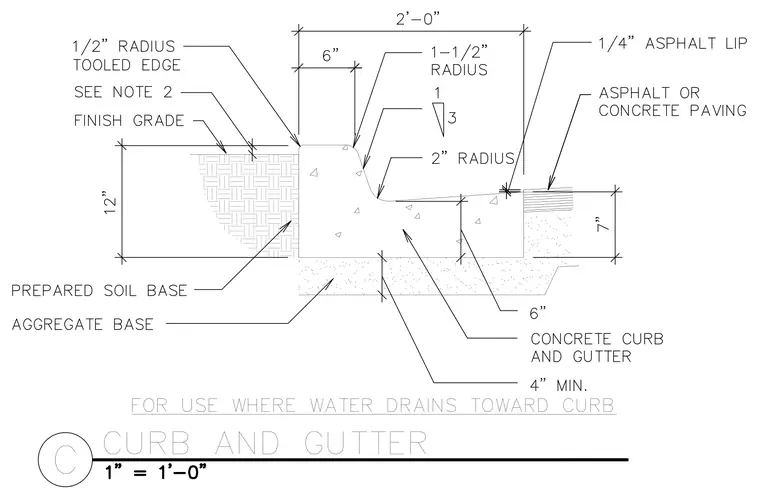

This concrete curb and gutter assembly features a twelve-inch overall height and a two-foot total width resting on a four-inch minimum aggregate base. The top back of the curb includes a one-half-inch radius tooled edge adjacent to finish grade and a prepared soil base. The face slopes at a one-to-three batter with a one-and-one-half-inch top radius and a two-inch bottom radius. The gutter pan slopes toward the curb and terminates with a one-quarter-inch asphalt lip abutting asphalt or concrete paving.
