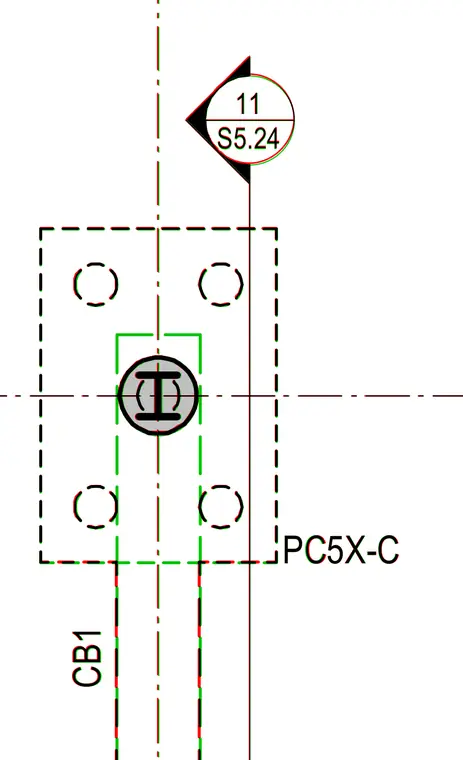

A structural steel column base plate connects member PC5X-C to support CB1 with four anchor bolts arranged in a rectangular pattern. Centerline grids intersect at the column profile, aligning the member with the foundation below. A detail callout references sheet S5.24 detail 11 for further connection criteria.
