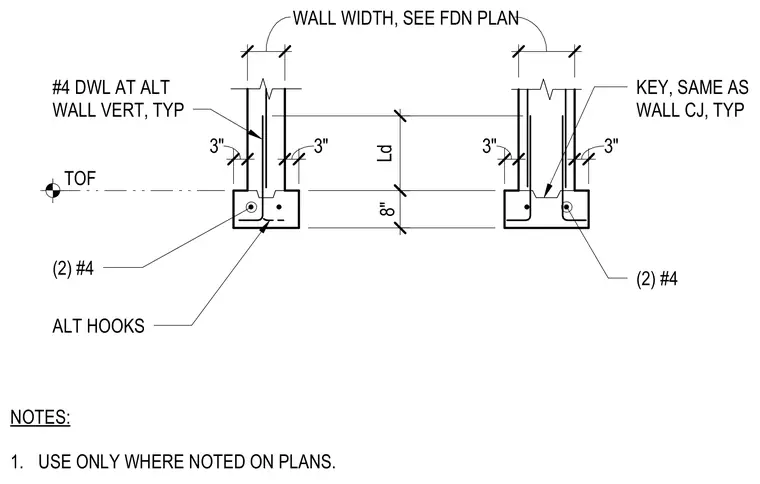

A continuous concrete footing supports a concrete wall of width sized per the foundation plan. The footing contains two number four longitudinal reinforcing bars and incorporates a keyway matching the wall construction joint. Number four dowels are placed at alternating wall vertical reinforcing locations with a development length of Ld and alternate hooks into the footing. The top of footing serves as the reference elevation.
TOF Ld 8" 8" 12" #4 DWL AT ALT WALL VERT, TYP KEY, SAME AS WALL CJ, TYP (2) #4 (2) #4 NOTES: 1. USE ONLY WHERE NOTED ON PLANS. ALT HOOKS WALL WIDTH, SEE FDN PLAN 3" 3" 3" 3"
