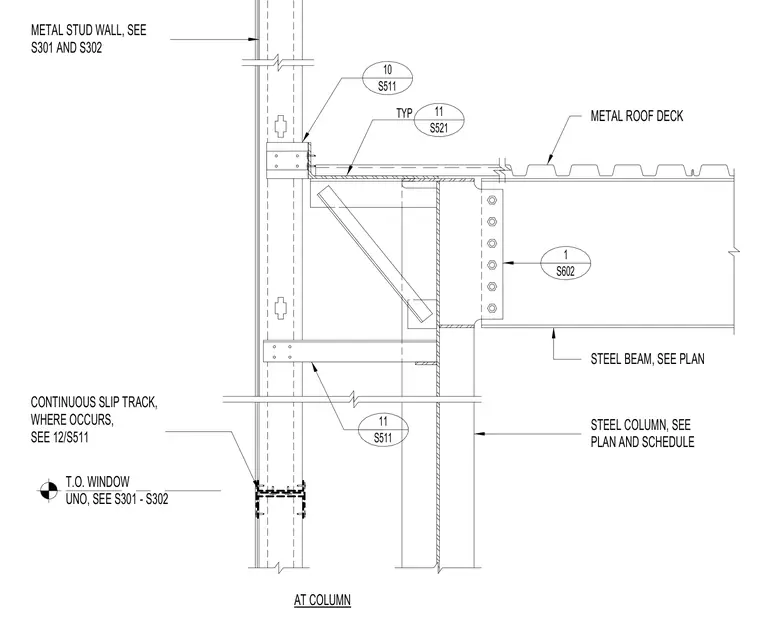

A structural steel beam connects to a steel column supporting a metal roof deck and a continuous slip track at the exterior metal stud wall. The beam is framed with a shear tab connection using multiple bolts, paired with a diagonal bracing element extending to the column flange. A continuous slip track detail occurs at the top of the window and wall assembly per structural notes. Framing sizes and layouts are referenced to the structural plans and schedules.
1 S602 AT COLUMN STEEL COLUMN, SEE PLAN AND SCHEDULE STEEL BEAM, SEE PLAN METAL ROOF DECK T.O. WINDOW METAL STUD WALL, SEE S301 AND S302 UNO, SEE S301 - S302 SEE 12/S511 WHERE OCCURS, CONTINUOUS SLIP TRACK, 11 S521 TYP 10 S511 11 S511
