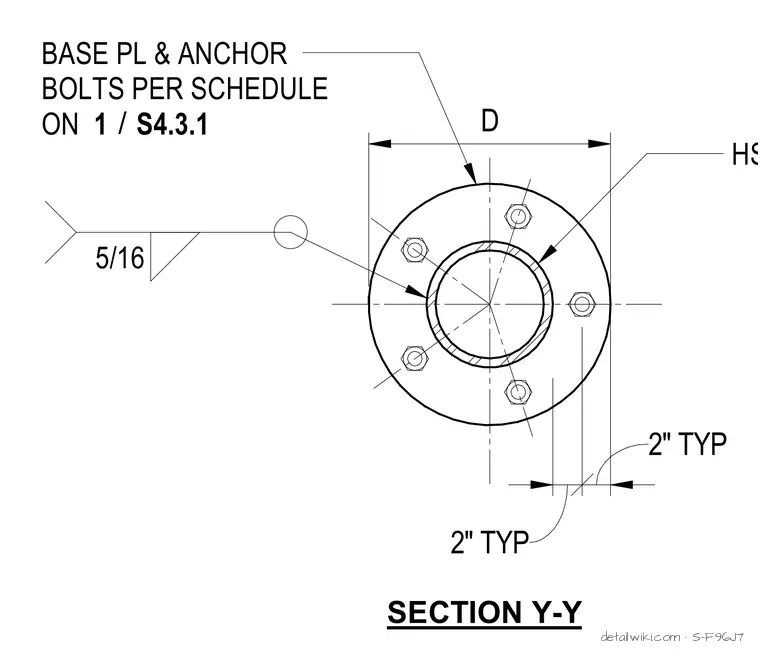

The drawing illustrates Section Y-Y, featuring a circular steel base plate with multiple anchor bolts arranged in a bolt circle around a hollow structural section column. A welding symbol indicates a 5/16 inch fillet weld with field weld and all-around weld notations connecting the structural members. Dimension lines specify typical edge clearances and overall diameter.
Text on the drawing
5/16 SECTION Y-Y BASE PL & ANCHOR BOLTS PER SCHEDULE ON 2" TYP 2" TYP HSS COL PER PLAN D / 1 S4.3.1
