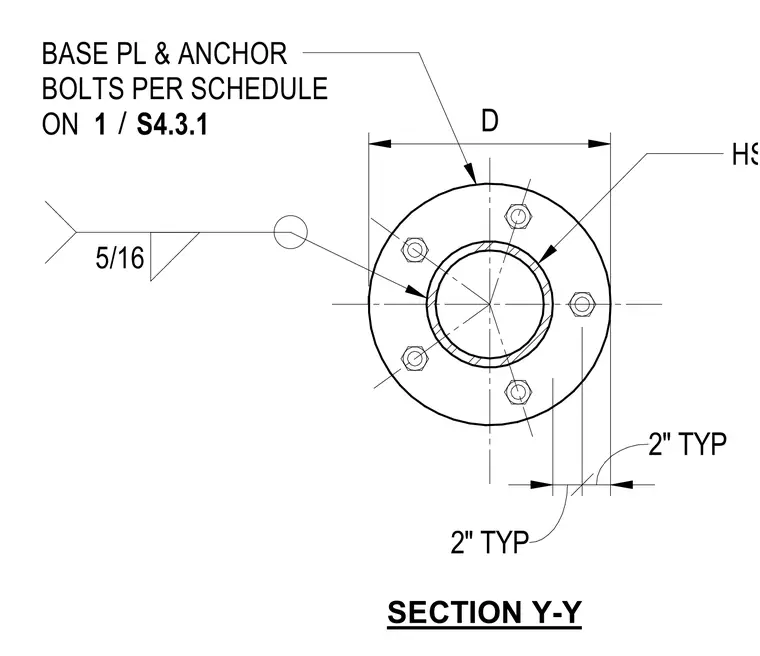

This structural detail shows a circular hollow structural section column connected to a base plate with anchor bolts sized per the schedule on drawing S4.3.1. A five-sixteenths inch fillet weld secures the column to the base plate around its perimeter. Dimensions indicate a typical two-inch spacing and clearance configuration. The circular base plate is anchored with multiple bolts arranged symmetrically around the column profile.
5/16 SECTION Y-Y BASE PL & ANCHOR BOLTS PER SCHEDULE ON 2" TYP 2" TYP HSS COL PER PLAN D / 1 S4.3.1
