Structural · S-F95K3

Concrete Tilt-Up Wall Pier Jamb and Lintel Reinforcing

Materials

Concrete Reinforced Concrete

Elements

Beams Walls Foundations / Footings Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

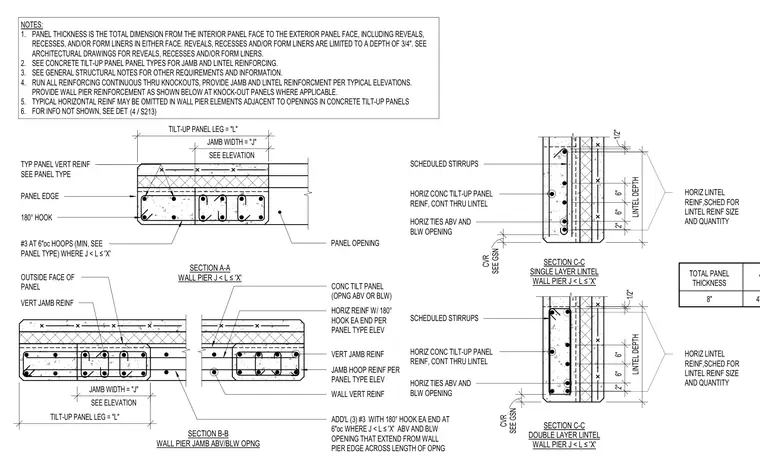

Concrete tilt-up panels feature reinforced wall pier jambs and lintels above and below openings with continuous horizontal reinforcement passing through knockouts. Vertical jamb reinforcement and scheduled stirrups or hoops are detailed for specific conditions where jamb width varies relative to the panel leg dimension. Additional number three bars with one-hundred-eighty-degree hooks are provided at each end spaced at six inches on center where applicable. Panel thickness includes total dimensions from interior to exterior faces with reveals and recesses limited to three-quarters of an inch.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
