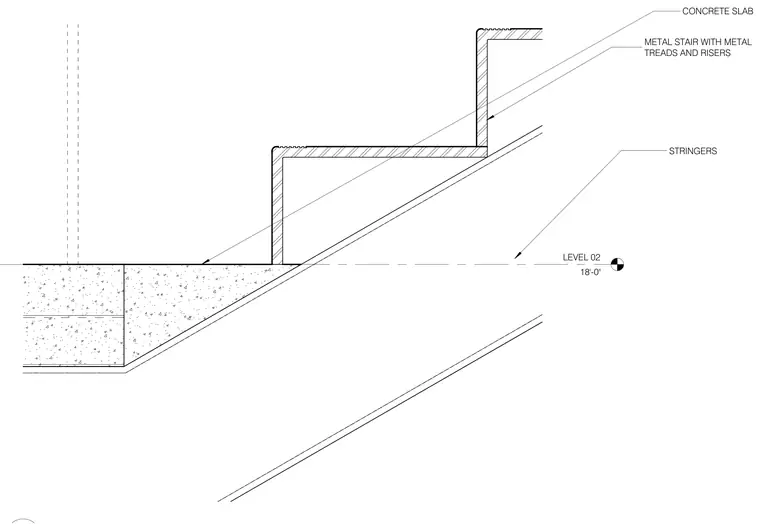

Metal stair stringers support metal treads and risers terminating at a concrete slab edge at Level 02, set at an elevation of eighteen feet. The stair assembly interfaces directly with the structural concrete slab.
