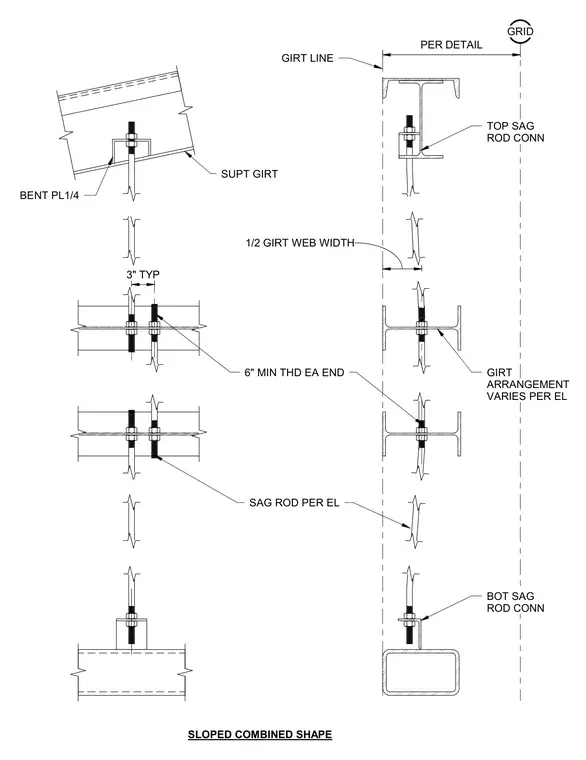

Wall girts connect to structural framing with sag rods spaced throughout the height at locations varying per elevation. Top and bottom sag rod connections utilize a quarter-inch bent plate secured to supporting girts. Rods feature six inches of minimum threading at each end with typical three-inch spacings. The layout accommodates sloped combined shapes aligned with grid lines at half girt web width dimensions.
GIRT LINE SUPT GIRT 1/2 GIRT WEB WIDTH GIRT ARRANGEMENT VARIES PER EL BENT PL1/4 PER DETAIL GRID 3" TYP SAG ROD PER EL 6" MIN THD EA END TOP SAG ROD CONN BOT SAG ROD CONN SLOPED COMBINED SHAPE
