Structural · S-F8S74

Horizontal Dowels Match S.O.G. Reinforcement

Materials

Concrete

Elements

Storefronts Floors / Slabs Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

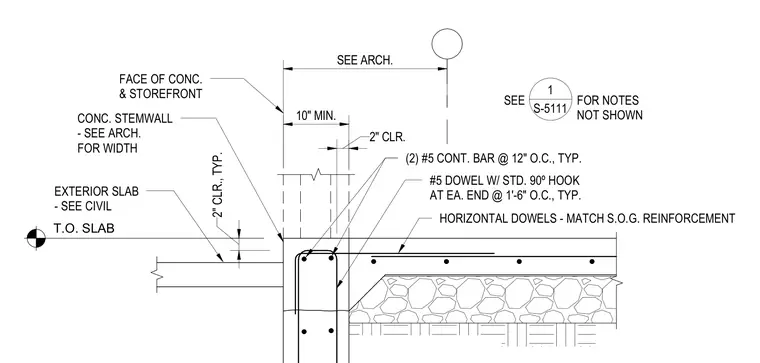

A structural connection joins a concrete stemwall, storefront assembly, and exterior slab on grade. The assembly incorporates two continuous number five bars spaced at twelve inches on center typically, alongside number five dowels featuring standard ninety-degree hooks at each end spaced at one foot six inches on center typically. A ten-inch minimum dimension and two-inch clearance are maintained for the concrete elements. Horizontal dowels match the slab on grade reinforcement, coordinating with architectural face of concrete and storefront dimensions as well as civil exterior slab criteria.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
