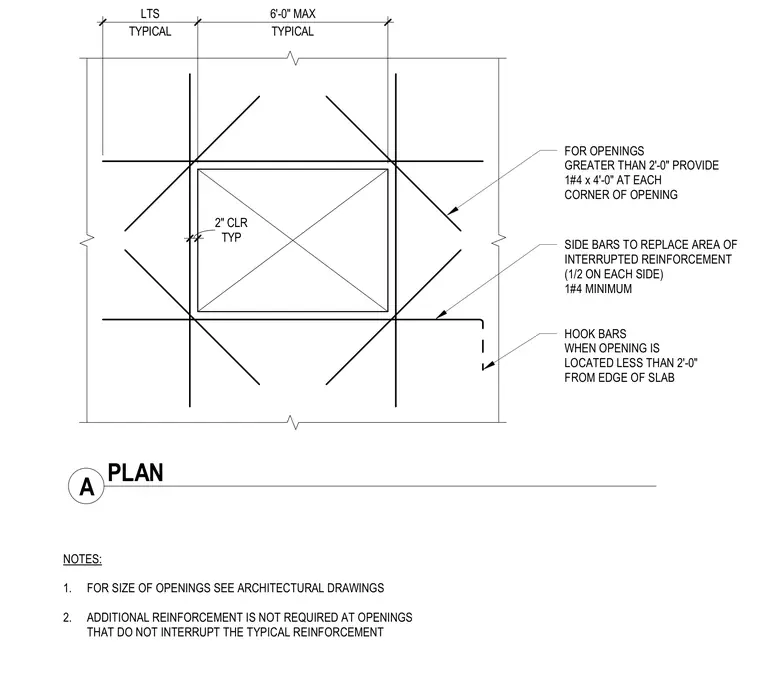

Openings greater than two feet require one number four bar measuring four feet in length at each corner of the opening. Side bars replace the area of interrupted reinforcement with one-half on each side, maintaining a minimum of one number four bar. Hook bars are required when the opening is located less than two feet from the edge of the slab. A typical two-inch clearance is maintained throughout.
FOR OPENINGS GREATER THAN 2'-0" PROVIDE 1#4 x 4'-0" AT EACH CORNER OF OPENING SIDE BARS TO REPLACE AREA OF INTERRUPTED REINFORCEMENT (1/2 ON EACH SIDE) 1#4 MINIMUM NOTES: 1. FOR SIZE OF OPENINGS SEE ARCHITECTURAL DRAWINGS 2. ADDITIONAL REINFORCEMENT IS NOT REQUIRED AT OPENINGS THAT DO NOT INTERRUPT THE TYPICAL REINFORCEMENT TYPICAL LTS TYPICAL 6'-0" MAX HOOK BARS WHEN OPENING IS LOCATED LESS THAN 2'-0" FROM EDGE OF SLAB TYP 2" CLR A PLAN
