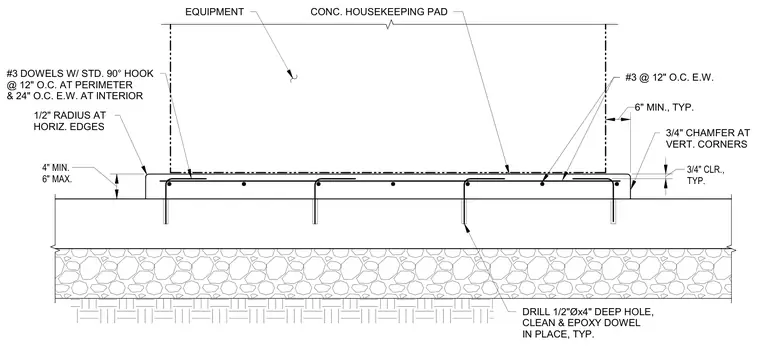

A concrete housekeeping pad bears on a slab on grade beneath mechanical equipment. The 6-inch minimum pad features a 3/4-inch chamfer at vertical corners and a 1/2-inch radius at horizontal edges. Reinforcement consists of No. 3 bars at 12 inches on center each way, supplemented by No. 3 dowels with standard 90-degree hooks spaced at 12 inches on center at the perimeter and 24 inches on center each way at the interior. These dowels are set into 1/2-inch diameter by 4-inch deep drilled holes cleaned and anchored with epoxy in place. Concrete cover is maintained at 3/4 of an inch typically, with pad thickness ranging from 4 inches minimum to 6 inches maximum.
1/2" RADIUS AT HORIZ. EDGES #3 DOWELS W/ STD. 90° HOOK @ 12" O.C. AT PERIMETER & 24" O.C. E.W. AT INTERIOR EQUIPMENT CONC. HOUSEKEEPING PAD 6" MIN., TYP. #3 @ 12" O.C. E.W. 3/4" CHAMFER AT VERT. CORNERS DRILL 1/2"Øx4" DEEP HOLE, CLEAN & EPOXY DOWEL IN PLACE, TYP. 3/4" CLR., TYP. 4" MIN. 6" MAX.
