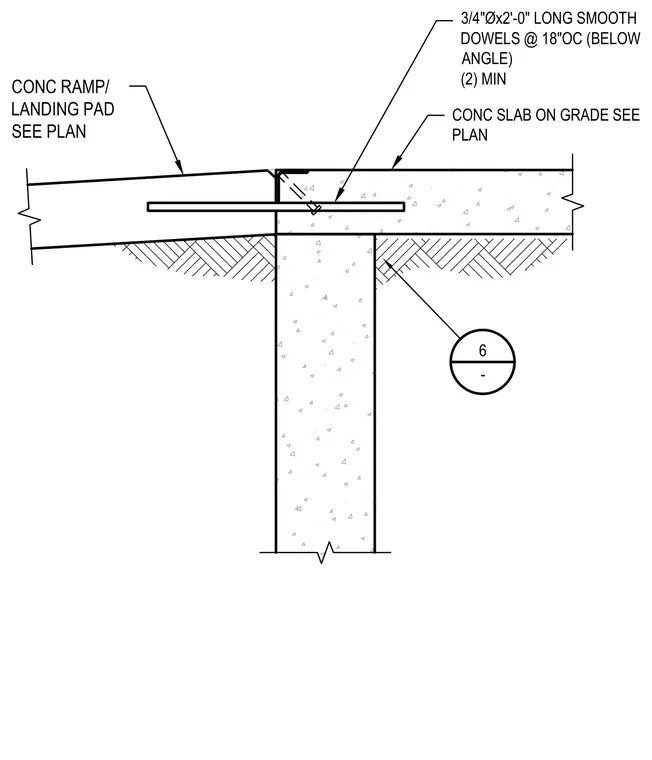

A concrete ramp landing pad connects to an adjacent concrete slab on grade over a concrete foundation wall. Three-quarter-inch diameter by two-foot long smooth steel dowels spaced at eighteen inches on center are embedded below an edge angle. Both the concrete ramp landing pad and the concrete slab on grade are sized per plan.
CONC RAMP/ LANDING PAD SEE PLAN CONC SLAB ON GRADE SEE PLAN 6 - 3/4"Øx2'-0" LONG SMOOTH DOWELS @ 18"OC (BELOW ANGLE) (2) MIN
