Structural · S-F8G5E

Davit Base Detail at Steel Column

Materials

Steel

Elements

Columns

Connections

Welded Connection

About this detail

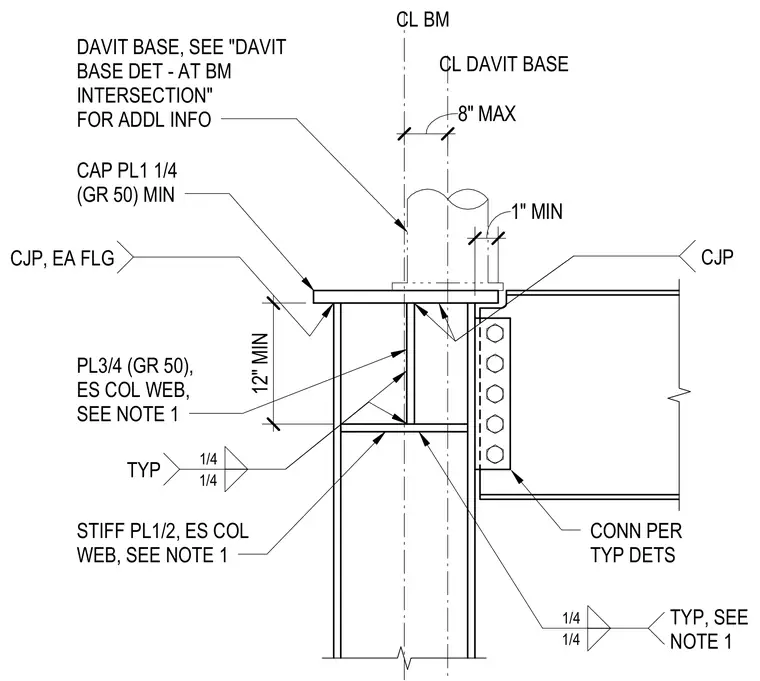

A structural steel davit base mounts atop a one-and-one-quarter-inch Grade 50 minimum cap plate supported by a steel column. The column web features three-quarter-inch Grade 50 stiffener plates welded with one-quarter-inch fillet welds. A one-half-inch stiffener plate aligns with the exterior side of the column web. Complete joint penetration welds connect the cap plate to the column flanges. A beam frames into the column side via a connection detailed per typical standards.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
