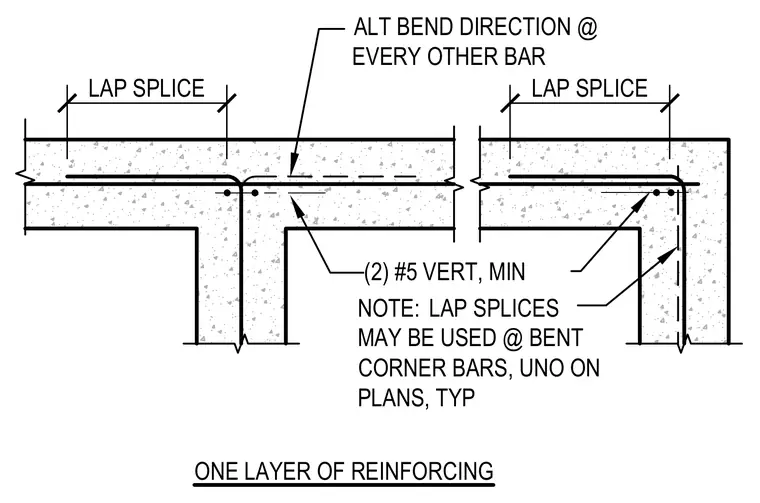

Reinforcing bars in the concrete wall utilize lap splices with alternating bend directions at every other bar. Two number five vertical reinforcing bars are provided as a minimum. Lap splices may be used at bent corner bars unless noted otherwise on plans.
LAP SPLICE LAP SPLICE ALT BEND DIRECTION @ EVERY OTHER BAR (2) #5 VERT, MIN NOTE: LAP SPLICES MAY BE USED @ BENT CORNER BARS, UNO ON PLANS, TYP ONE LAYER OF REINFORCING
