Structural · S-F8BGG

Roof Ladder Support Connection to Hollow Structural Section

Materials

Steel Metal (misc.)

Elements

Roofs Arches Connections / Plates

Connections

HSS Connection

About this detail

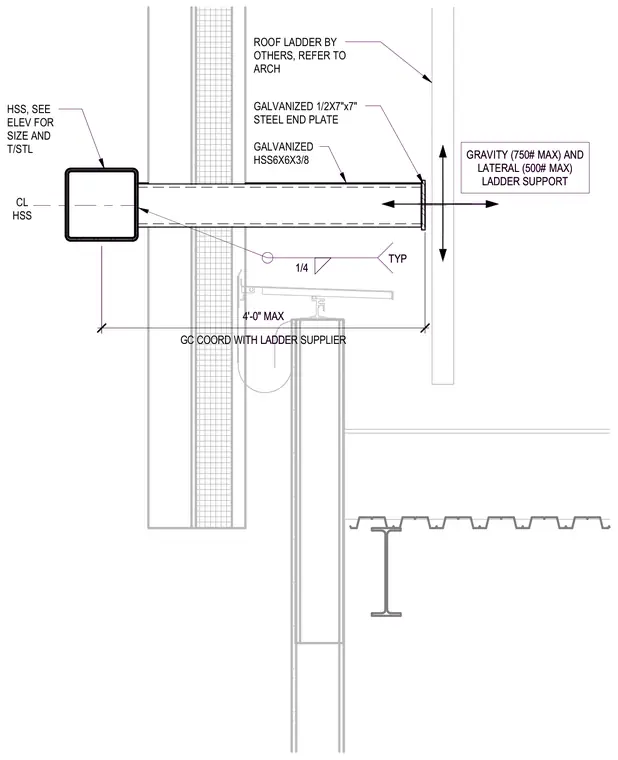

A galvanized hollow structural section measuring six inches by six inches by three-eighths of an inch connects horizontally to a main structural steel member sized per plan. A galvanized one-half-inch by seven-inch by seven-inch steel end plate welds to the outer end of the hollow structural section with a one-quarter-inch typical fillet weld. The exterior roof ladder mounts to this end plate, designed to transfer seven hundred fifty pounds maximum gravity load and five hundred pounds maximum lateral load. The maximum extension from the centerline of the structural member to the ladder interface measures four feet zero inches, requiring general contractor coordination with the ladder supplier and the architectural drawings.
