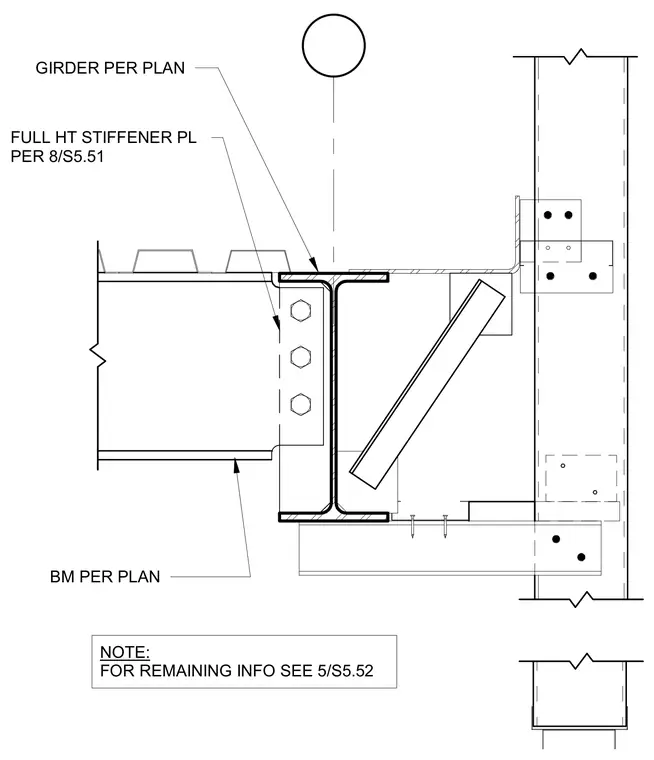

A perimeter beam frames into a girder sized per plan with a full-height stiffener plate installed per detail 8/S5.51. The connection includes a beam web shear tab with three bolts connecting to the girder web. Additional framing and connection components tie into the structural column per plan. Refer to detail 5/S5.52 for remaining connection information.
BM PER PLAN FULL HT STIFFENER PL PER 8/S5.51 NOTE: FOR REMAINING INFO SEE 5/S5.52 GIRDER PER PLAN
