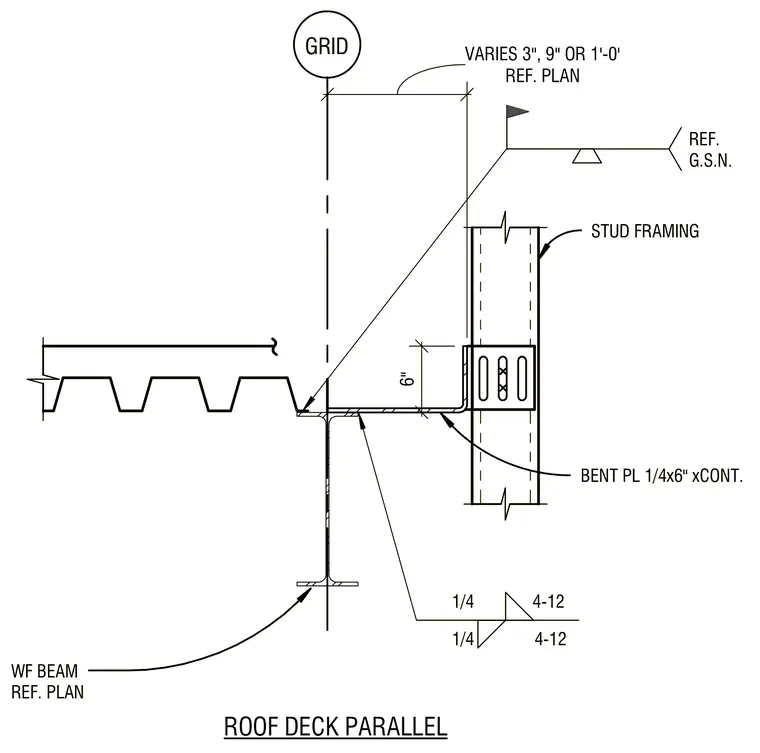

A roof deck runs parallel to a six-inch wide flange beam with the edge set at a variable dimension of three inches, nine inches, or one foot from the grid line. A continuous one-quarter-inch by six-inch bent plate connects the wide flange beam to the adjacent stud framing. Fillet welds of one-quarter-inch size are specified with spacing per structural notes. The connection accommodates alignment variations referenced from the architectural plan.
STUD FRAMING BENT PL 1/4x6" xCONT. 1/4 4-12 1/4 4-12 REF. PLAN VARIES 3", 9" OR 1'-0' ROOF DECK PARALLEL GRID 6" WF BEAM REF. PLAN REF. G.S.N. STUD FRAMING BENT PL 1/4x6" xCONT. 1/4 4-12 1/4 4-12 REF. PLAN VARIES 3", 9" OR 1'-0' ROOF DECK PARALLEL GRID 6" WF BEAM REF. PLAN REF. G.S.N.
