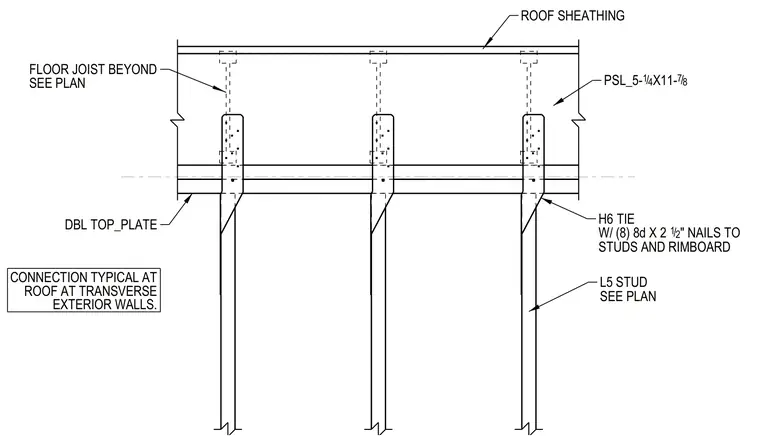

Roof sheathing spans over parallel strand lumber measuring five and a quarter inches by eleven and seven eighths inches, supported by floor joists seen beyond and tied to the wall framing below. Wood studs spaced per plan bear beneath a double top plate. H6 metal ties secure the wall studs to the rimboard using eight eight-penny two and a half inch nails. This transverse exterior wall connection detail applies typically at roof levels.
DBL TOP_PLATE L5 STUD SEE PLAN ROOF SHEATHING PSL_5- 1 4 / X11- 7 8 / SEE PLAN FLOOR JOIST BEYOND H6 TIE W/ (8) 8d X 2 1 2 / " NAILS TO STUDS AND RIMBOARD EXTERIOR WALLS. ROOF AT TRANSVERSE CONNECTION TYPICAL AT
