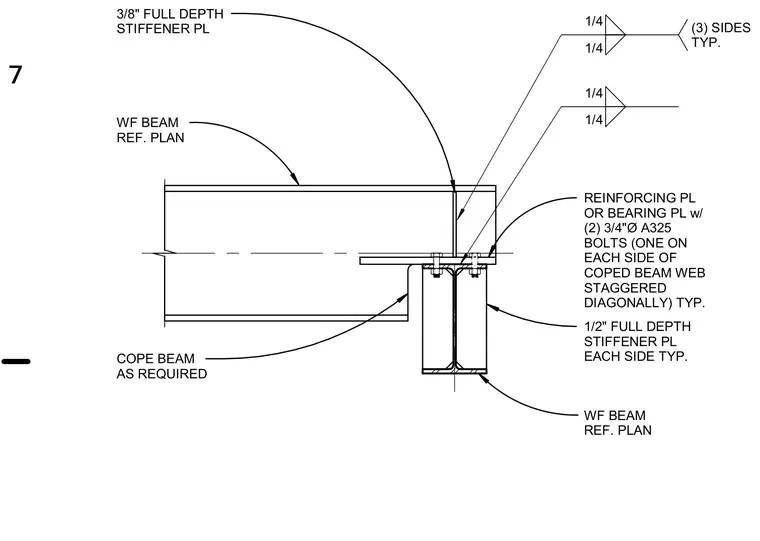

A wide-flange beam is coped as required to frame into a supporting wide-flange beam reference plan. A three-eighths-inch full-depth stiffener plate is welded to the web with quarter-inch fillet welds on three sides typically. A reinforcing plate or bearing plate is connected to the coped beam web using two three-quarter-inch-diameter ASTM A325 bolts placed one on each side of the web and staggered diagonally. A one-half-inch full-depth stiffener plate is provided on each side of the supporting beam web typically.
REINFORCING PL OR BEARING PL w/ (2) 3/4"Ø A325 BOLTS (ONE ON EACH SIDE OF COPED BEAM WEB STAGGERED DIAGONALLY) TYP. WF BEAM REF. PLAN WF BEAM REF. PLAN COPE BEAM AS REQUIRED 1/4 1/4 1/2" FULL DEPTH STIFFENER PL EACH SIDE TYP. 1/4 1/4 (3) SIDES TYP. 3/8" FULL DEPTH STIFFENER PL 7
