A continuous L3x3x3/8 metal angle supports a metal deck with a minimum two-inch bearing width and is secured to an existing ten-inch concrete masonry unit wall. Half-inch diameter Hilti HIT-HY 70 adhesive anchors are spaced at three feet on center. Solid grouted masonry requires four and a half inches of effective embedment. Hollow masonry requires a short screen tube with two-inch effective embedment.

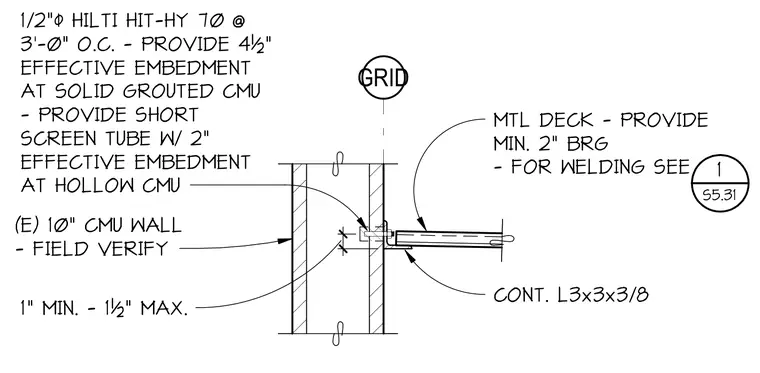

GRID (E) 10" CMU WALL - FIELD VERIFY CONT. L3x3x3/8 MTL DECK - PROVIDE MIN. 2" BRG - FOR WELDING SEE 1 S5.31 1/2"6 HILTI HIT-HY 70 @ 3'-0" O.C. - PROVIDE 4½" EFFECTIVE EMBEDMENT AT SOLID GROUTED CMU - PROVIDE SHORT SCREEN TUBE W/ 2" EFFECTIVE EMBEDMENT AT HOLLOW CMU 1 1/2" 1" MIN. - 1½" MAX.
