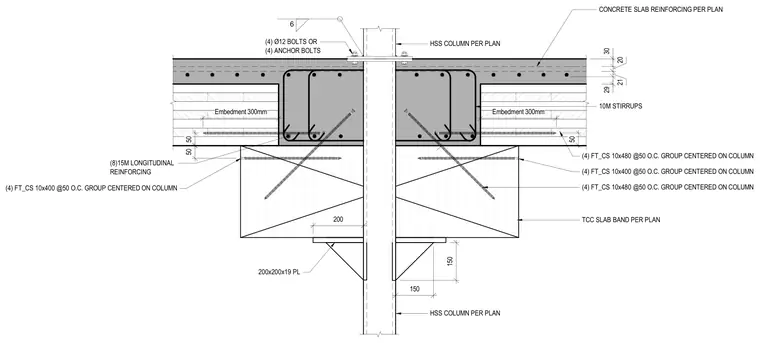

An HSS column passes through a reinforced concrete slab band, anchored at the top plate with four 12-millimeter diameter bolts and at the base with a 200x200x19 millimeter plate welded to the column. The surrounding timber-concrete composite slab band incorporates ten-millimeter stirrups, longitudinal reinforcing bars, and groups of threaded fasteners with three-hundred-millimeter embedment lengths. Additional tension ties and friction connectors are grouped and centered on the column per plan. Concrete slab reinforcing is detailed across the top of the assembly.
(4) FT_CS 10x480 @50 O.C. GROUP CENTERED ON COLUMN (4) FT_CS 10x480 @50 O.C. GROUP CENTERED ON COLUMN 10M STIRRUPS TCC SLAB BAND PER PLAN (8)15M LONGITUDINAL REINFORCING CONCRETE SLAB REINFORCING PER PLAN 29 21 20 30 HSS COLUMN PER PLAN HSS COLUMN PER PLAN (4) Ø12 BOLTS OR (4) ANCHOR BOLTS 6 50 50 (4) FT_CS 10x400 @50 O.C. GROUP CENTERED ON COLUMN (4) FT_CS 10x400 @50 O.C. GROUP CENTERED ON COLUMN 200x200x19 PL Embedment 300mm Embedment 300mm 50 200 150 150
