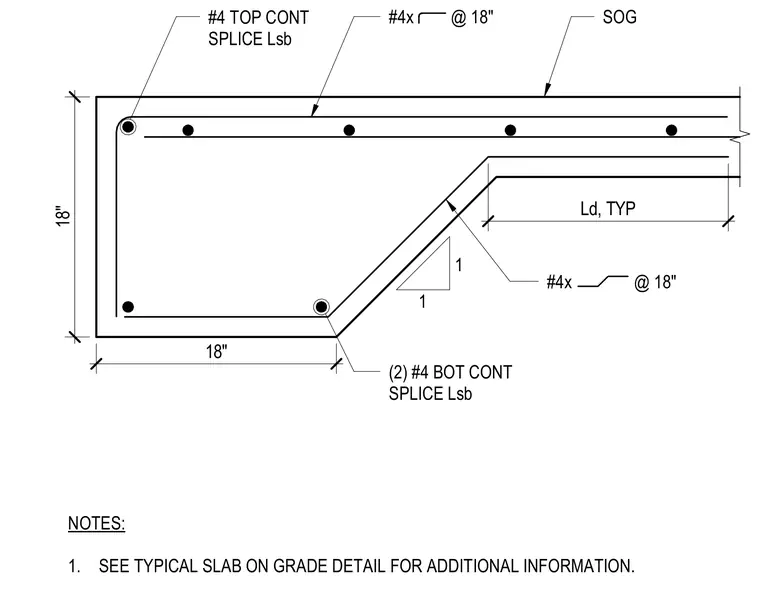

This structural detail shows a thickened edge condition for a concrete slab on grade, measuring eighteen inches in total depth and width at the perimeter. The assembly is reinforced with a continuous number four top rebar with splice length, two continuous number four bottom rebars with splice length, and transverse number four bars spaced at eighteen inches on center. A one-to-one sloped transition leads from the thickened edge into the thinner main slab area, maintaining standard development length Ld. Additional information is coordinated per the typical slab on grade detail notes.
18" 18" 1 1 SOG #4 TOP CONT SPLICE Lsb #4x @ 18" (2) #4 BOT CONT SPLICE Lsb Ld, TYP #4x @ 18" NOTES: 1. SEE TYPICAL SLAB ON GRADE DETAIL FOR ADDITIONAL INFORMATION.
