About this detail

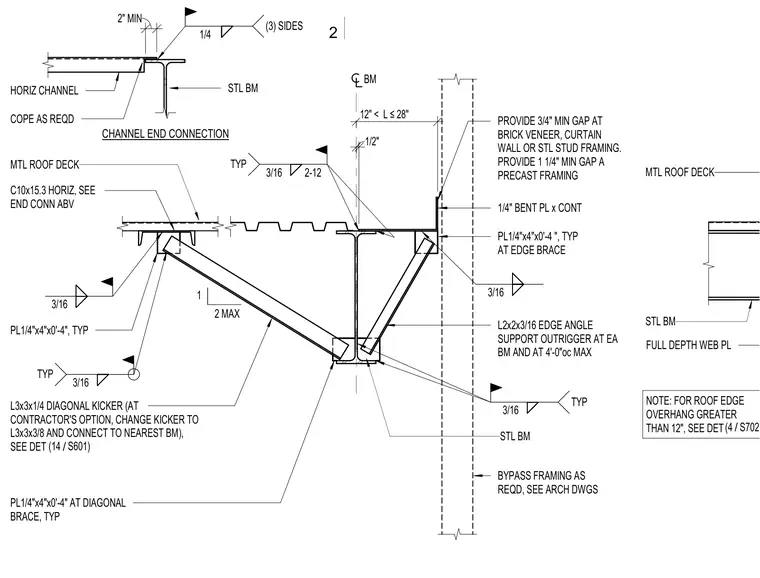

A horizontal C10x15.3 channel end connection supports a metal roof deck with a steel beam. The assembly incorporates L3x3x1/4 diagonal kickers, L2x2x3/16 edge angles supporting outriggers at each beam and at four feet on center maximum, and 1/4 inch thick connection plates measuring 4 inches by 0 feet 4 inches typically at edge braces and diagonal braces. A continuous 1/4 inch bent plate ties into the assembly with specific clearance gaps provided at brick veneer, curtain wall, steel stud framing, and precast framing. Fillet welds of 3/16 inch size are specified throughout, with three-sided welding at specific connection points.
