Structural · S-F7E6Q

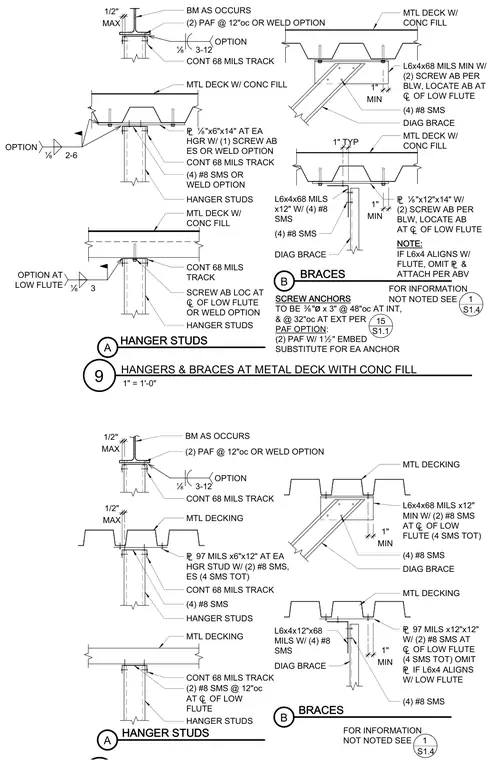

Hangers and Braces at Metal Deck with Concrete Fill

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Decks Bracing Anchors / Embeds

Connections

Bracing Connection Welded Connection Deck Attachment Embed Plate

About this detail

Cold-formed steel hanger studs and diagonal braces attach to a composite metal deck with concrete fill. The assembly utilizes continuous 68 mils tracks, L6x4 angle bracing secured with number 8 self-drilling metal screws, and gusset plates fastened at the low flutes of the metal deck. Screw anchors measuring 3/8 inch in diameter by 3 inches long are spaced at 48 inches on center internally and 32 inches on center externally, with powder-actuated fastener options featuring 1-1/2 inch embedment provided as substitutions. Fillet welds and alternative welded connections are indicated where permitted by the design. Additional framing members occur as required by the structural layout.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
