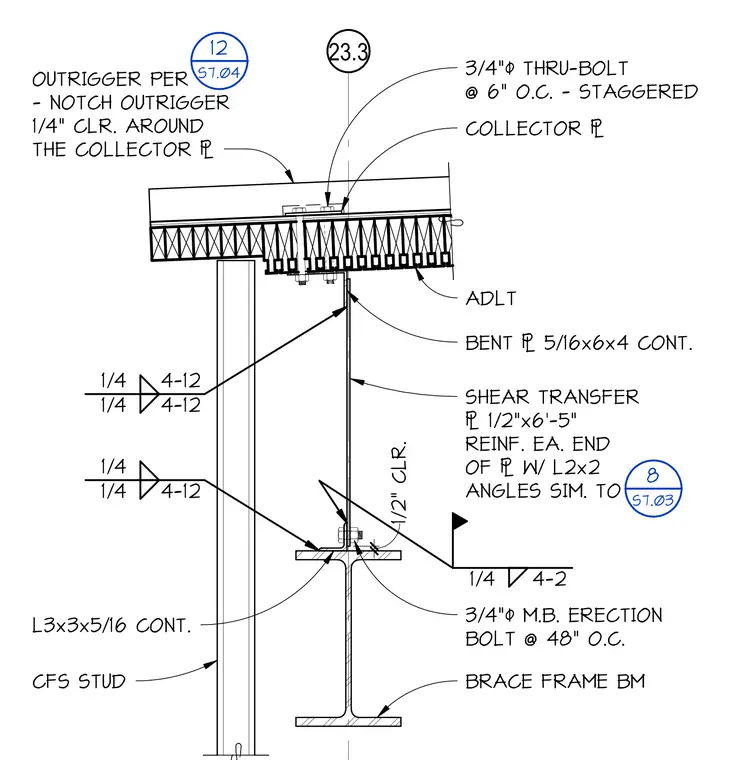

A cold-formed steel outrigger is notched with a one-quarter inch clearance around the collector plate. The collector plate is fastened to the framing using three-quarter inch diameter thru-bolts at six inches on center staggered. A continuous five-sixteenth by six by four-inch bent plate provides shear transfer and is reinforced at each end with L2x2 angles similar to the brace frame beam. A continuous L3x3x5/16 angle connects the assembly with three-quarter inch diameter machine erection bolts at forty-eight inches on center. The cold-formed steel stud maintains a one-half inch clearance from the connection components.
23.3 ADLT COLLECTOR & OUTRIGGER PER - NOTCH OUTRIGGER 1/4" CLR. AROUND THE COLLECTOR & BENT & 5/16x6x4 CONT. SHEAR TRANSFER & 1/2"x6'-5" REINF. EA. END OF & W/ L2x2 ANGLES SIM. TO BRACE FRAME BM L3x3x5/16 CONT. 1/4 4-12 1/4 1/4 4-2 1/4 4-12 1/4 4-12 3/4"$ THRU-BOLT @ 6" O.C. - STAGGERED 8 S7.03 12 S7.04 CFS STUD 1/2" CLR. 3/4"$ M.B. ERECTION BOLT @ 48" O.C.
