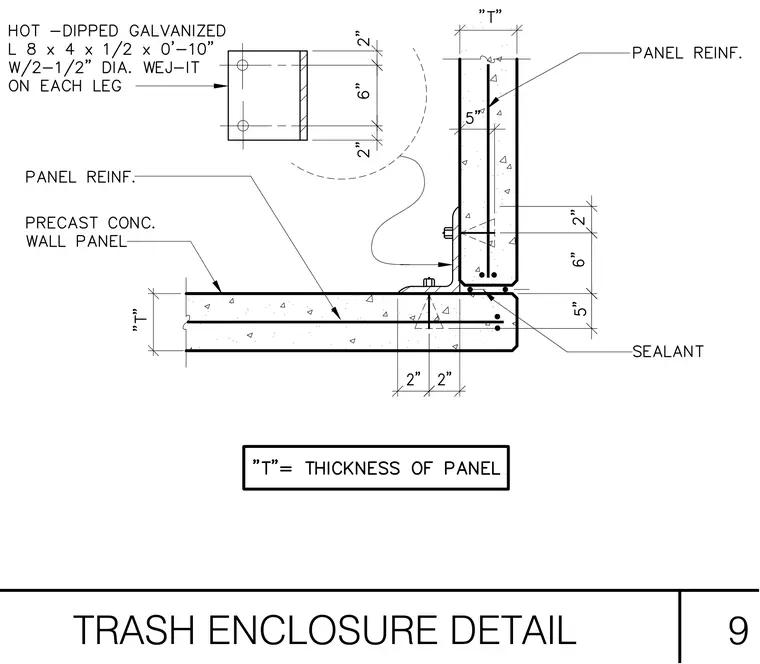

Precast concrete wall panels connect at a 90-degree corner with a hot-dipped galvanized angle measuring 8 by 4 by 1/2 inches by 0 feet 10 inches long. The angle fastens to each panel leg using two 1/2-inch diameter Wej-It expansion anchors. Panel reinforcement runs continuously through both precast concrete wall panels, which feature a variable thickness 'T'. A bead of sealant fills the exterior vertical joint between the adjacent precast panels.
