An embedment assembly featuring a 3/8-inch by 10-1/2-inch by 1-foot 5-inch face plate is anchored into a perpendicular concrete masonry unit wall. Four three-quarter-inch diameter headed studs with 6-1/2-inch embedment and welded ASTM A706 number 4 reinforcing bars, measuring 4 feet long, provide structural anchorage. Drag bars designated as face plate 'a' tie into the assembly with specific edge distances and spacing dimensions of 3-1/2 inches, 1-1/2 inches, 7-1/2 inches, 8 inches, and 6 inches.

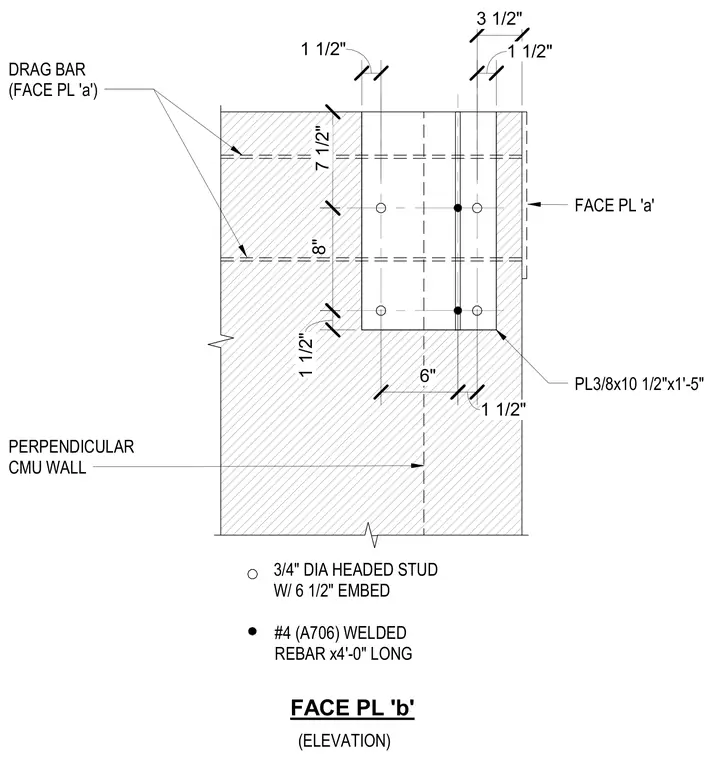

3 1/2" 1 1/2" 7 1/2" 1 1/2" 1 1/2" 6" 8" 1 1/2" DRAG BAR (FACE PL 'a') PL3/8x10 1/2"x1'-5" PERPENDICULAR CMU WALL FACE PL 'a' FACE PL 'b' (ELEVATION) #4 (A706) WELDED REBAR x4'-0" LONG 3/4" DIA HEADED STUD W/ 6 1/2" EMBED
