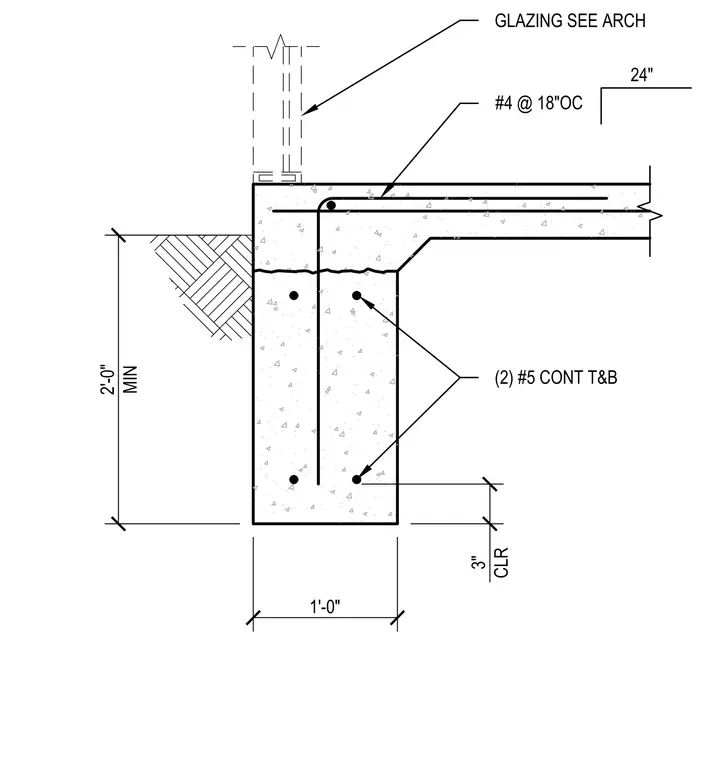

A continuous concrete foundation wall measuring one foot wide with a minimum depth of two feet features two continuous number five reinforcing bars at the top and bottom. Number four vertical reinforcing bars are spaced at eighteen inches on center and hook into the footing. The stem wall supports glazing sized per architectural drawings, maintaining a three-inch clear cover.
