Structural · S-F66PH

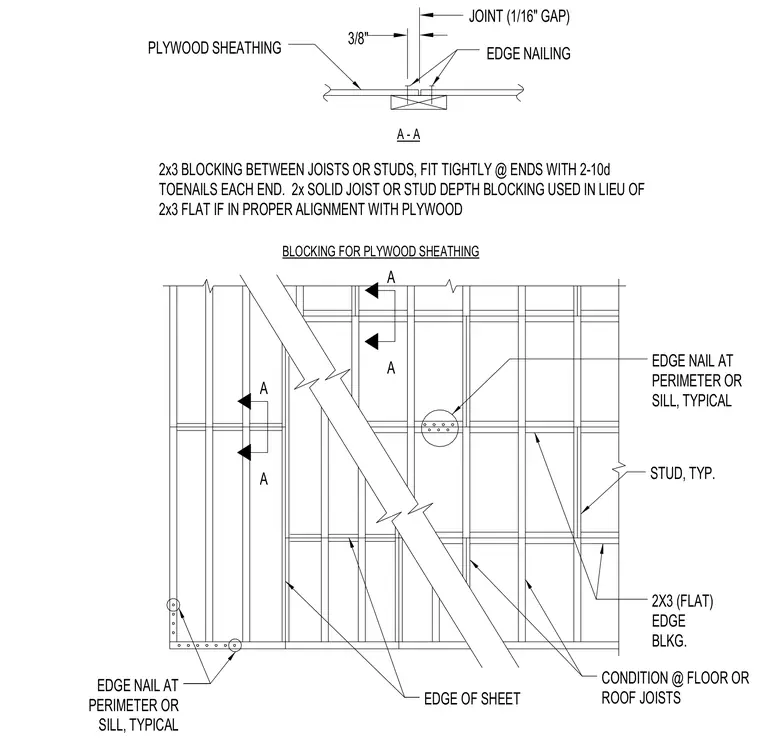

Typical Plywood Diaphragm Blocking Detail

Materials

Elements

About this detail

Wood-framed floors and roofs feature typical plywood sheathing edge blocking and joint configurations. Plywood panels meet over framing members with a one-sixteenth inch gap at joints and are secured with edge nailing at a three-eighths inch margin from the panel edge. Two-by-three flat edge blocking fits between studs or joists, secured at each end with two ten-penny toenails. Alternatively, full-depth solid lumber blocking matching the joist or stud depth is permitted when properly aligned with the plywood edges.
