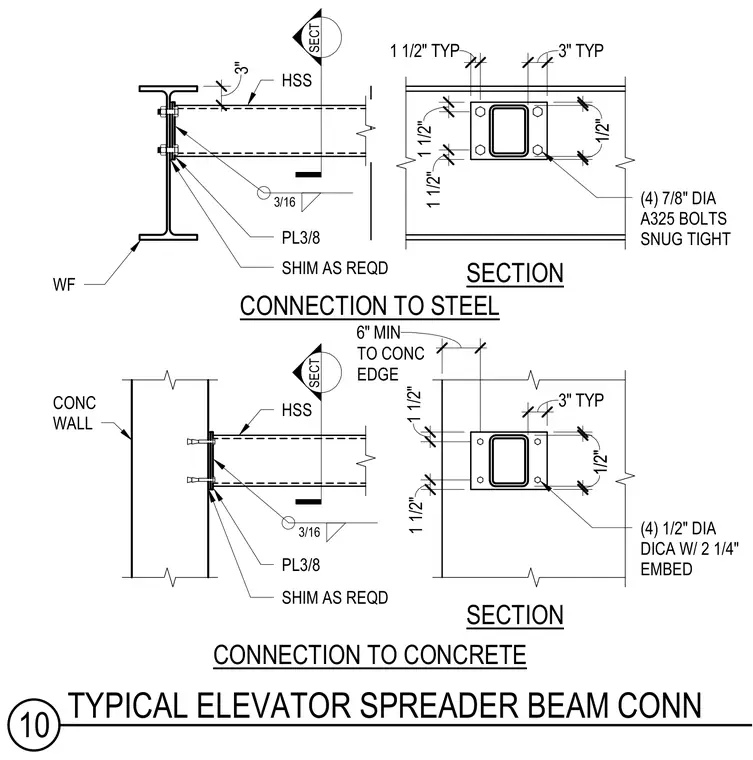

Elevator spreader beam connections to both structural steel and concrete wall supports. The steel connection features a hollow structural section member framing into a wide flange beam flange via a three-eighths-inch plate, shim plate as required, four seven-eighths-inch diameter A325 snug-tight bolts, and a three-sixteenths-inch fillet weld. The concrete connection secures a hollow structural section to a concrete wall using a three-eighths-inch plate, shims as required, a three-sixteenths-inch fillet weld, and four half-inch diameter anchors with two-and-a-quarter-inch embedment and six-inch minimum edge distance.
SECT SECT CONNECTION TO STEEL CONNECTION TO CONCRETE SECTION SECTION PL3/8 SHIM AS REQD HSS WF 3/16 (4) 7/8" DIA A325 BOLTS SNUG TIGHT PL3/8 SHIM AS REQD HSS CONC WALL 3/16 TO CONC EDGE (4) 1/2" DIA DICA W/ 2 1/4" EMBED 6" MIN 1 1/2" 1 1/2" 1/2" 1/2" 3" TYP 1 1/2" 1 1/2" 1 1/2" TYP 3" TYP 1/2" 1/2" 3" 10 TYPICAL ELEVATOR SPREADER BEAM CONN
