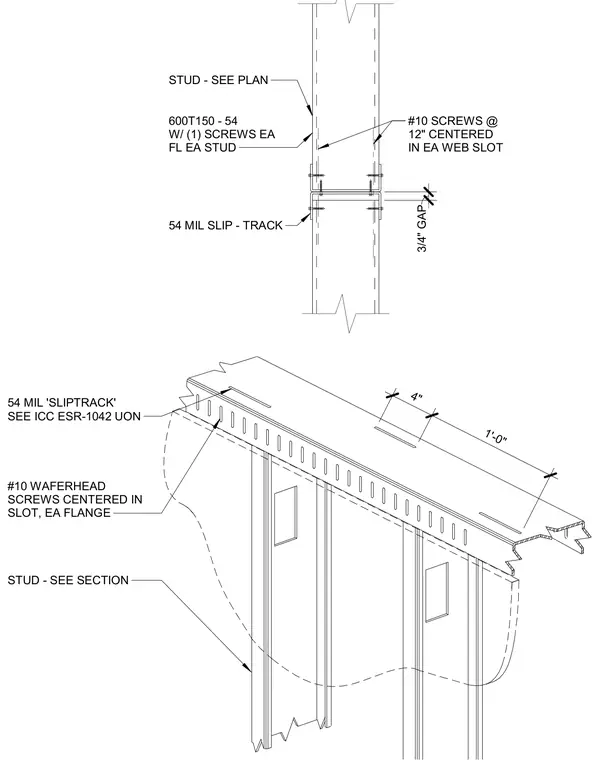

Cold-formed steel stud framing connects to a fifty-four mil slip track designed to accommodate vertical deflection. A three-quarter-inch gap is maintained between the framing members. Number ten waferhead screws are centered in the slotted web and fastened through each flange per manufacturer specifications. The assembly allows independent vertical movement of the structural slab above without transferring loads to the non-load-bearing partitions.
3/4" GAP #10 SCREWS @ 12" CENTERED IN EA WEB SLOT STUD - SEE PLAN 600T150 - 54 W/ (1) SCREWS EA FL EA STUD 54 MIL SLIP - TRACK 4" 1'-0" 54 MIL 'SLIPTRACK' SEE ICC ESR-1042 UON #10 WAFERHEAD SCREWS CENTERED IN SLOT, EA FLANGE STUD - SEE SECTION
