A structural steel column base plate measuring 1 inch by 14 inches by 1 foot 2 inches is secured with four 1-inch diameter hot-dipped galvanized anchor bolts spaced at 11 inches each way. The base plate rests on a shim and grout layer with a maximum thickness of 1 inch, atop a reinforced concrete footing. The footing contains number 5 reinforcing bars at 12 inches on center each way, number 4 ties at 6 inches on center with an additional tie at the top, and number 5 dowels with standard hooks at 12 inches on center. Plate washers measuring 1/2 inch by 3 inches by 3 inches are included at the anchor bolts.

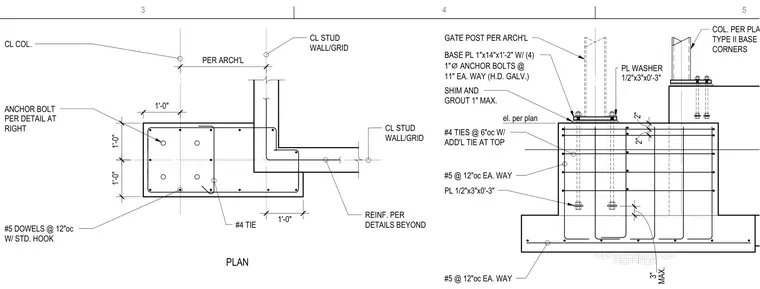

el. per plan 1'-0" #5 @ 12"oc EA. WAY #5 @ 12"oc EA. WAY #4 TIE GATE POST PER ARCH'L BASE PL 1"x14"x1'-2" W/ (4) 1" ⌀ ANCHOR BOLTS @ 11" EA. WAY (H.D. GALV.) SHIM AND GROUT 1" MAX. REINF. PER DETAILS BEYOND #5 DOWELS @ 12"oc W/ STD. HOOK ANCHOR BOLT PER DETAIL AT RIGHT CL COL. 1'-0" 1'-0" CL STUD WALL/GRID #4 TIES @ 6"oc W/ ADD'L TIE AT TOP COL. PER PLAN W/ TYPE II BASE PL AT CORNERS 2" 2" CL STUD WALL/GRID 1'-0" PLAN PER ARCH'L MAX. 3" PL 1/2"x3"x0'-3" PL WASHER 1/2"x3"x0'-3" 3 4 5
