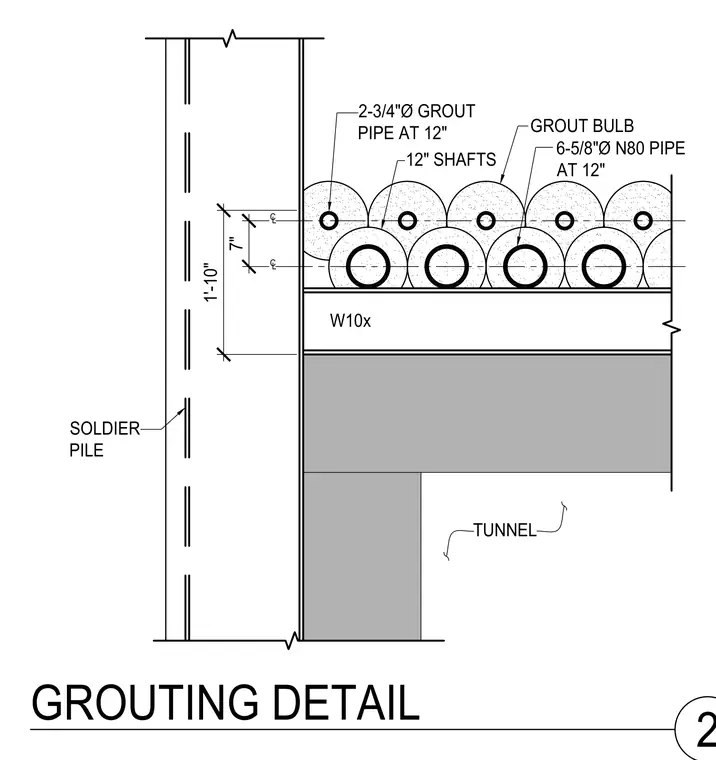

Grouting arrangement for a tunnel soldier pile assembly. Two-and-three-quarter-inch-diameter grout pipes and six-and-five-eighths-inch-diameter N80 pipes are spaced at twelve inches on center through twelve-inch shafts with grout bulbs. A W10x wide flange shape bears below the pipe array, adjacent to a vertical soldier pile and tunnel structure.
1'-10" 2-3/4"Ø GROUT PIPE AT 12" 6-5/8"Ø N80 PIPE AT 12" W10x GROUTING DETAIL 2 TUNNEL SOLDIER PILE 12" SHAFTS 7" CL CL GROUT BULB
