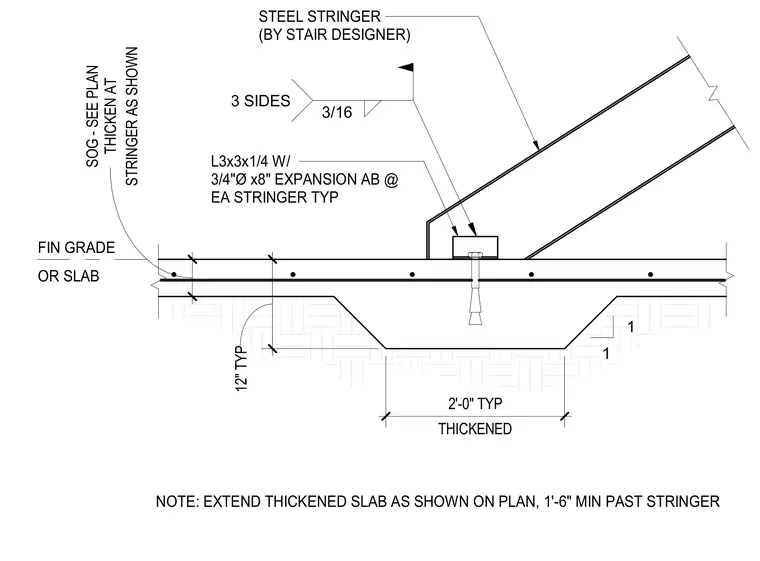

A steel stair stringer bears onto a thickened slab on grade and connects via an L3x3x1/4 angle secured with three-quarter-inch diameter by eight-inch expansion anchor bolts at each stringer. The slab features a two-foot wide thickened section that extends a minimum of one foot six inches past the stringer. A three-sixteenths-inch fillet weld on three sides connects the stringer to the angle bracket.
OR SLAB FIN GRADE THICKENED 2'-0" TYP 12" TYP 1 1 STEEL STRINGER (BY STAIR DESIGNER) L3x3x1/4 W/ 3/4"Ø x8" EXPANSION AB @ EA STRINGER TYP 3/16 3 SIDES STRINGER AS SHOWN SOG - SEE PLAN THICKEN AT NOTE: EXTEND THICKENED SLAB AS SHOWN ON PLAN, 1'-6" MIN PAST STRINGER
